Sustainable Alternative to Diesel Generators | Clean & Flexible Temporary Power | Ideal for Construction Sites & Outdoor Events

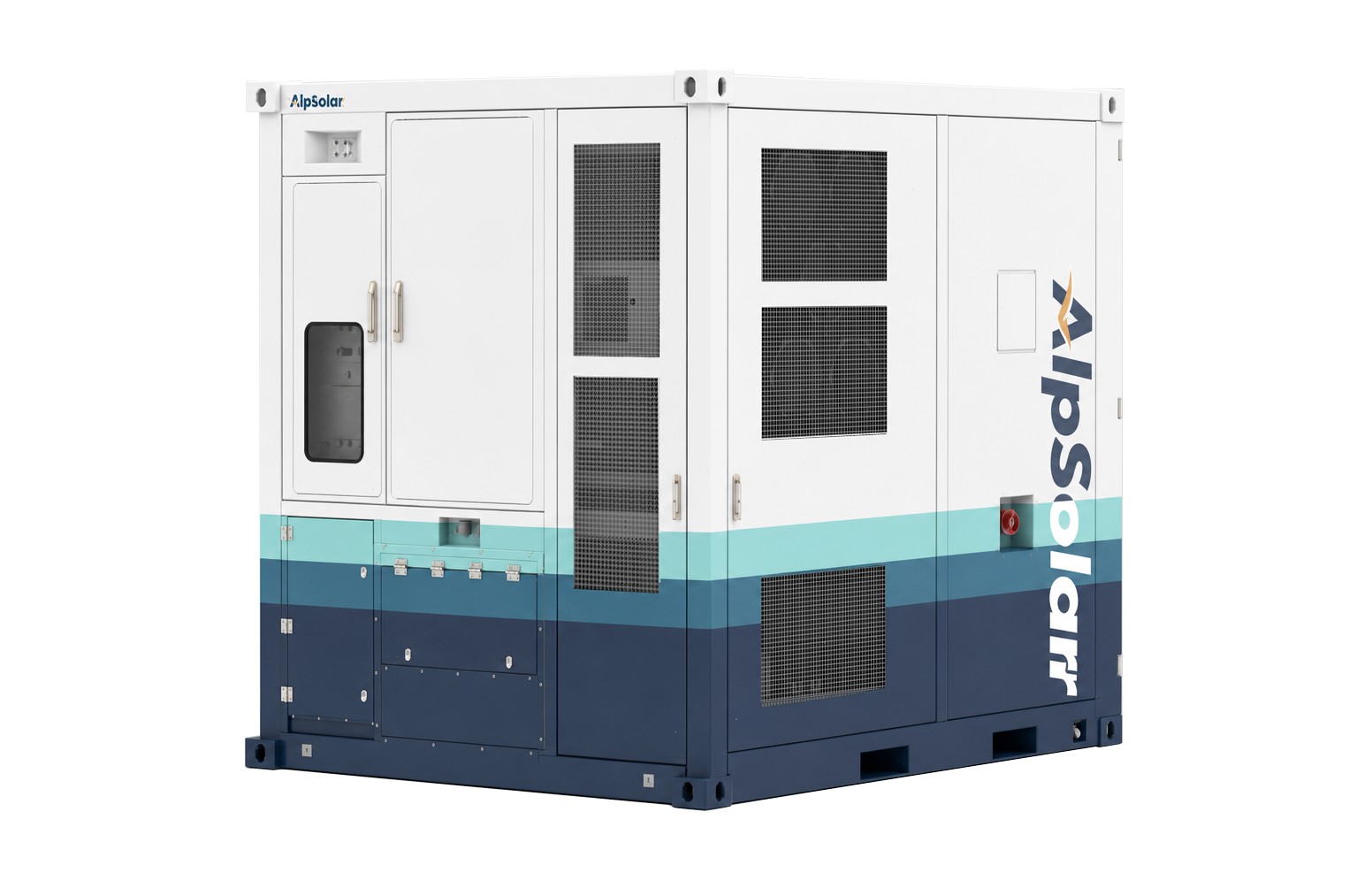

FlexCube Series is an innovative and reliable mobile energy storage solution that can operate as a sustainable alternative to diesel generators or work alongside them to reduce fuel consumption. It is ideal for construction sites, outdoor events such as exhibitions, sports events, and music festivals, as well as electric vehicles and construction machinery, delivering clean, efficient, and flexible temporary power.
| Electrical (Max. Output) | |
| Overload Power ≤ 60 sec. | 466 kW/466 kVA (PF 1.0) 397 kW/496 kVA (PF 0.8) |
| Overload Power ≤ 10 sec. | 585 kW/585 kVA (PF 1.0) 476 kW/595 kVA (PF 0.8) |
| Overload Current ≤ 60 sec. @ 380/400/415 Vac | 754/716/690 A |
| Overload Current ≤ 10 sec. @ 380/400/415 Vac | 904/858/827 A |
| Nominal Power | 386 kW/386 kVA (PF 1.0) 342 kW/428 kVA (PF 0.8) |
| Nominal Current @ 380/400/415 Vac | 650/618/595 A |
| Electrical (Max. Input) | |
| Charging Power | 410 kW |
| Nominal Current @ 380/400/415 Vac | 624/593/571 A |
| Electrical (General) | |
| Voltage Range | 380 to 415 Vac (3Ph+N+PE) |
| Frequency | 50/60±2.5 Hz |
| Energy Storage | |
| Rated Nominal DC Capacity | 430 kWh |
| Battery Cell Type | CATL lithium iron phosphate (LFP) |
| Rated Battery Cell Life | 5,000 cycles |
| Mechanical | |
| Ambient Operating Temperature Range | -20 to +50°C (derating from 45°C) |
| Dimensions (L x W x H) | 3.0 x 2.3 x 2.4 m |
| Weight | 9,500 kg |
| Ingress Protection/Corrosion Protection | IP54/C3 |
| General | |
| Fire Suppression System Type | Aerosol agent |
| Thermal Management Architecture | Liquid cooled + Forced convection |
| Coolant Type | Ethylene glycol |
| Connectivity | Cellular 4G |
| Isolation Transformer | Yes |
| Microgrid Controller Compatibility | ComAp, DeepSea, or SmartGen |
| Certifications | |
| Power Electronics & EMC | IEC 62477-1, IEC 61000-6-2 & -6-4 |
| Battery | IEC 62619, IEC 62933, UL 1973, UL 9540A (cell) |
| Other Compliance | PGS 37-1, PGS 37-2, UN 38.3 |
| Optional Features | |
| Direct DC MPPT Controller Power | 120 kW |
| Serial Charging System Rated Power | 80 kW |
| Enhanced Corrosion Protection | C4 |
