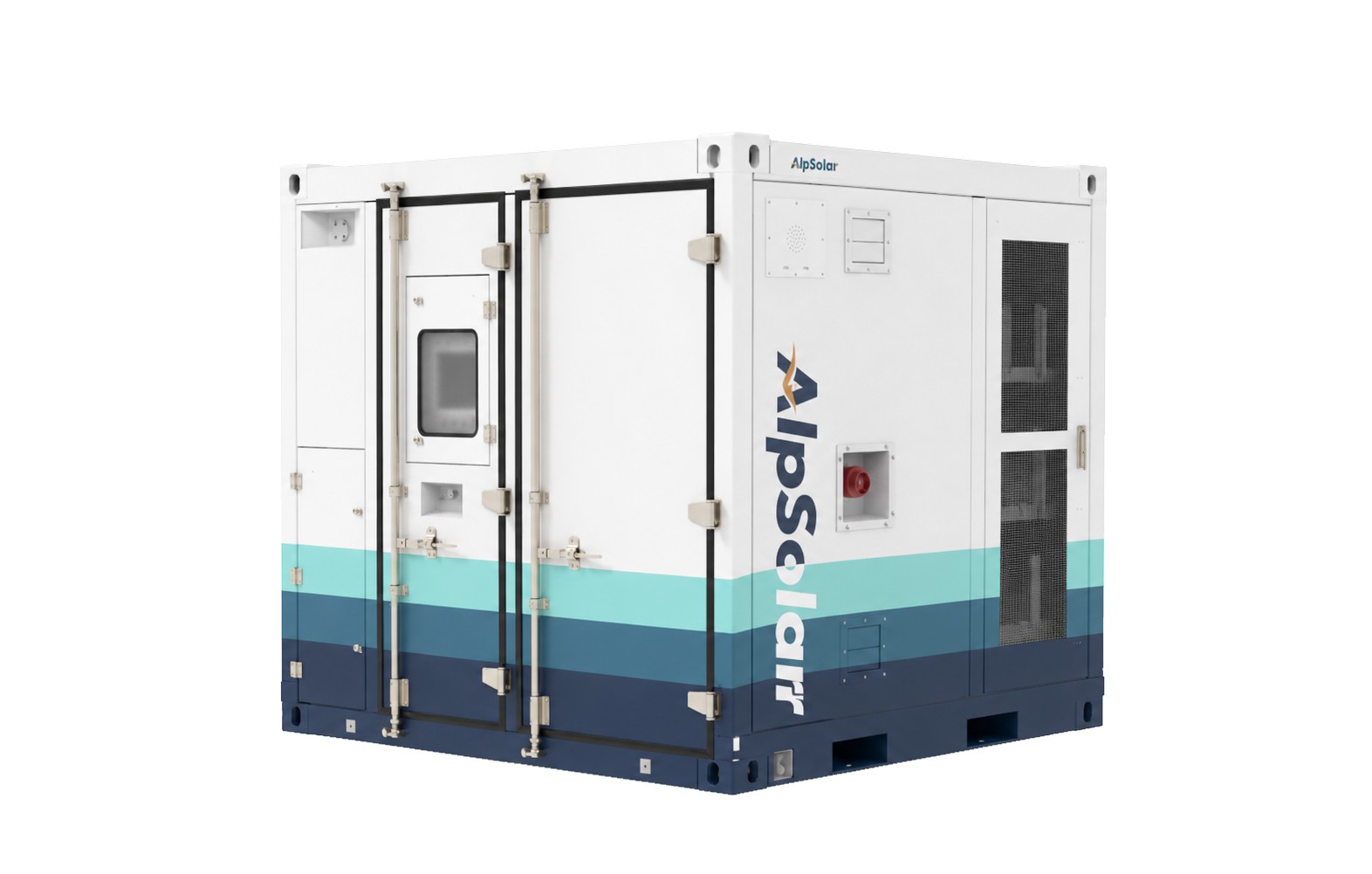

Mobile Energy Storage System
215 kWh | CATL LFP | 193 kW rated output | Liquid cooled | IP55/C3




| 型号 | FlexCube 215EL PRO |
|---|---|
| Electrical (Max. Output) | |
| Overload Power ≤ 60 sec. | 233 KW/248 KVA |
| Overload Power ≤ 10 sec. | 292 KW/297 KVA |
| Overload Current ≤ 60 sec. @ 380/400/415 Vac | 377 / 358/ 345 A |
| Overload Current ≤ 10 sec. @ 380/400/415 Vac | 452/429/414 A |
| Nominal Power | 193 KW/214 KVA |
| Nominal Current @380/400/415 Vac | 325/309/ 298 A |
| Electrical (Max. Input) | |
| Charging Power | 205 KW |
| Charging Current @ 380/400/415 Vac | 312/297/ 286 A |
| Electrical (General) | |
| Voltage Range | 380 to 415 Vac (3Ph+N+PE) |
| Frequency | 50/60±2.5 Hz |
| Energy Storage | |
| Rated Nominal DC Capacity | 215 KWh |
| Battery Cell Type | CATL lithium iron phosphate (LFP) |
| Rated Battery Cell Life* | 5,000 cycles |
| Mechanical | |
| Ambient Operating Temperature Range | -20 to +50°C (derating from 45°C) |
| Dimensions (L x W x H) | 2.40 x 2.15 x 2.20 m |
| Weight | 5,400 kg |
| Ingress Protection/Corrosion Protection | IP55/C3 |
| General | |
| Fire Suppression System Type | Aerosol agent |
| Thermal Management Architecture | Liquid cooled |
| Coolant Type | Ethylene glycol |
| Connectivity | Cellular 4G |
| Isolation Transformer | Yes |
| Microgrid Controller Compatibility | ComAp,DeepSea,or SmartGen |
| Certifications | |
| Power Electronics | IEC62477-1,IEC61851-1*,-23*,IEC62109-1* |
| Battery | IEC62619,UL 9540A(cell) |
| Other Compliance | UN 38.3(road and sea) |
| Optional Features | |
| Direct DC MPPT Controller Power | 60 KW (input voltage up to 900 Vdc) |
| Serial Charging System Rated Power | 80 KW |
| Enhanced Corrosion Protection | C4 |
